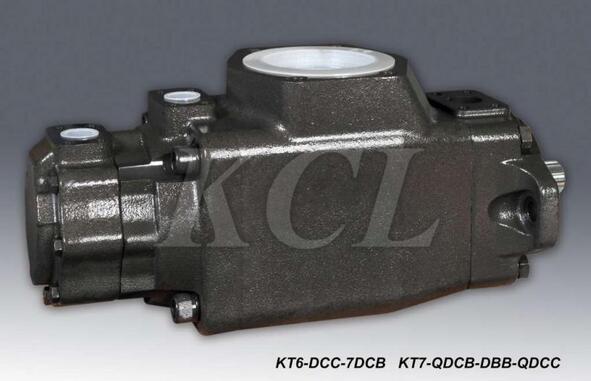

KT6DCC/ KT6DDCS/ KT6EDC/M/ KT6EDCS/ KT7DCB/ KT7DBB/ KT7QDCB/ KT7QDCC
operating characteristics typical (使用) (特點) (榜樣)
|
KT6DCC OPERATING CHARACTERISTICS - TYPICAL [24 cSt] (input power p (kw) for one cartridge only) |
||||||||||
|
Pressure |
Series |
Volumetric |
Flow q & n = 1500 rpm |
Input power p & n =1500rpm |
P Max |
Max |
||||
|
cm3/rev |
p=0bar |
p=140bar |
p=240bar |
p=7bar |
p=140bar |
p=240bar |
240 |
2500 |
||
|
P1 |
014 |
47.6 |
71.4 |
62.1 |
55.9 |
2.3 |
18.5 |
30.6 |
||
|
017 |
58.2 |
87.3 |
78.0 |
71.8 |
2.5 |
22.2 |
37.0 |
|||
|
020 |
66.0 |
99.0 |
89.7 |
83.5 |
2.8 |
24.9 |
41.7 |
|||
|
024 |
79.5 |
119.3 |
110.0 |
103.8 |
3.0 |
29.6 |
49.8 |
|||
|
028 |
89.7 |
134.5 |
125.2 |
119.0 |
3.2 |
33.2 |
55.9 |
|||
|
031 |
98.3 |
147.5 |
138.1 |
131.9 |
3.3 |
36.2 |
61.0 |
|||
|
035 |
111.0 |
166.5 |
157.2 |
151.0 |
3.5 |
40.7 |
68.7 |
|||
|
038 |
120.3 |
180.4 |
171.1 |
164.9 |
3.7 |
43.9 |
74.3 |
|||
|
042(1) |
136.0 |
204.0 |
194.7 |
188.5 |
4.0 |
49.4 |
83.7 |
2200 |
||
|
045(1) |
145.7 |
218.5 |
209.2 |
203.0 |
4.1 |
52.8 |
89.5 |
|||
|
050(1) |
158.0 |
237.0 |
227.7 |
224.0(2) |
4.4 |
57.0 |
85.0(2) |
210 |
||
|
061(1) |
190.5 |
285.7 |
278.0 |
------ |
4.6 |
60.6 |
------ |
120 |
||
|
P2 - P3 |
|
|
|
|
|
|
|
|
275 |
2500 |
|
005 |
17.2 |
25.8 |
20.8 |
17.3 |
1.4 |
7.5 |
12.2 |
|||
|
006 |
21.3 |
31.9 |
26.9 |
23.4 |
1.5 |
8.9 |
14.7 |
|||
|
008 |
26.4 |
39.6 |
34.6 |
31.1 |
1.6 |
10.7 |
17.7 |
|||
|
010 |
34.1 |
51.1 |
46.1 |
42.6 |
1.7 |
13.4 |
22.3 |
|||
|
012 |
37.1 |
55.6 |
50.6 |
47.1 |
1.7 |
14.4 |
24.1 |
|||
|
014 |
46.0 |
69.0 |
64.0 |
60.5 |
1.9 |
17.6 |
29.5 |
|||
|
017 |
58.3 |
87.4 |
82.4 |
78.9 |
2.1 |
21.9 |
36.9 |
|||
|
020 |
63.8 |
95.7 |
90.7 |
87.2 |
2.2 |
23.8 |
40.2 |
|||
|
022 |
70.3 |
105.4 |
100.4 |
96.9 |
2.3 |
26.1 |
44.1 |
|||
|
025 |
79.3 |
118.9 |
113.9 |
110.4 |
2.5 |
29.2 |
49.5 |
|||
|
028 |
88.8 |
133.2 |
128.2 |
125.8(2) |
2.8 |
32.7 |
48.5(2) |
210 |
||
|
031 |
100.0 |
150.0 |
145.0 |
142.6(2) |
2.8 |
36.5 |
54.2(2) |
|||
|
(1) 042-045-050-061 = 2200 rpm max. (2) 028-031-050 = 210 bar max int. (3) 061 = 120 bar max. int. Min Speed：600 rpm |
||||||||||
